VW MK1 Modified Knuckles

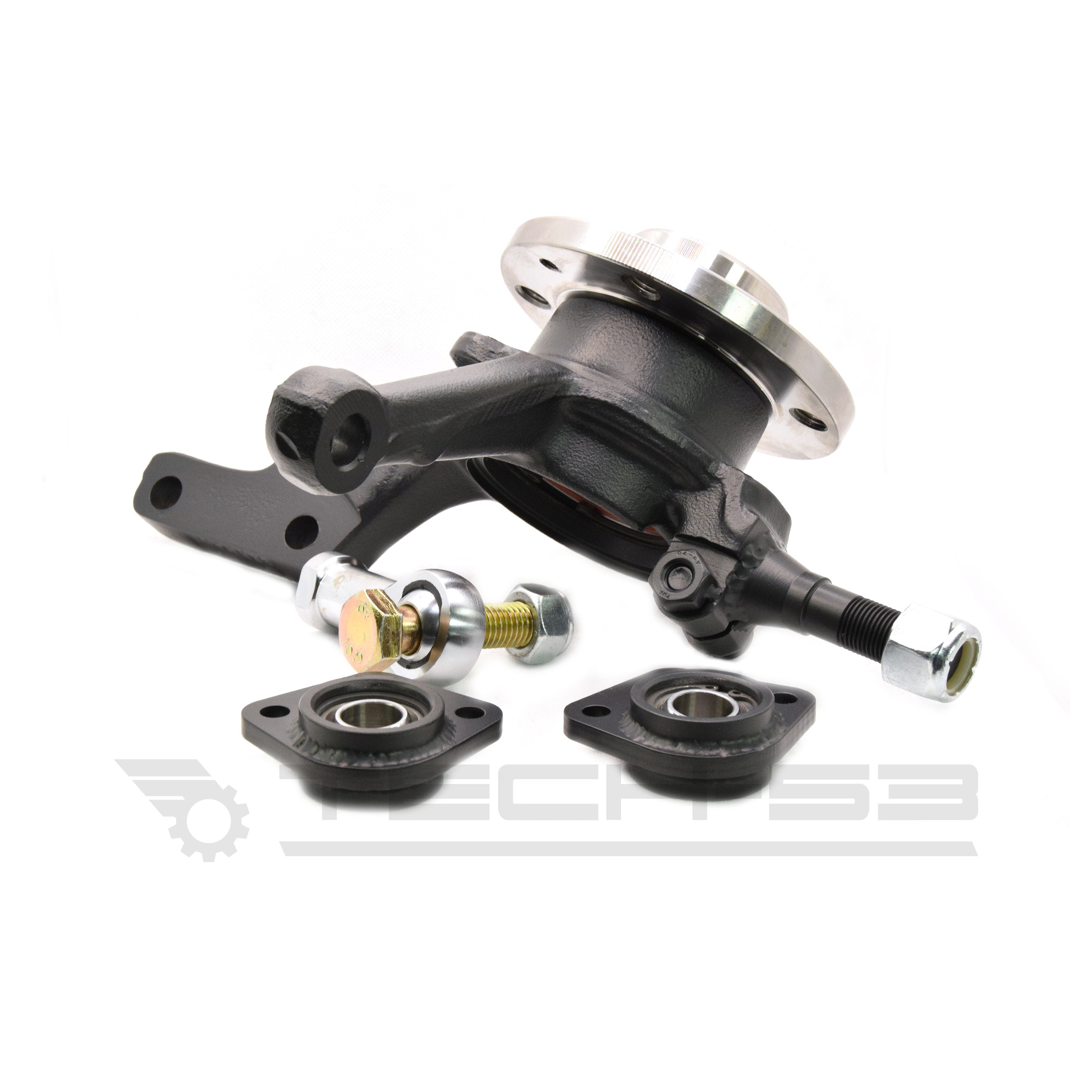

Fully rebuilt front spindle assemblies with custom ball joint extender welded on (choice of lengths). Ball joint extender is made from 4140 steel, and TIG welding with warm up, and cooling procedure, to ensure metallurgical integrity.

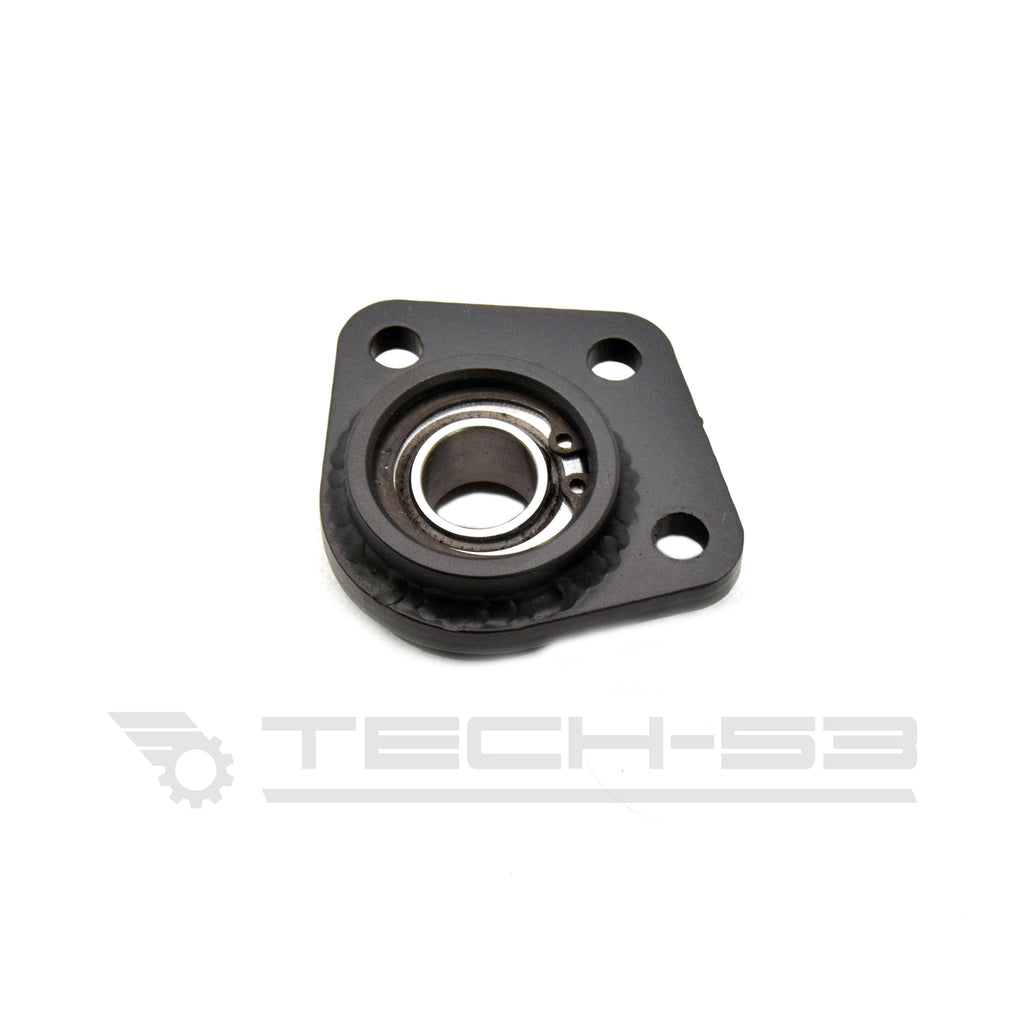

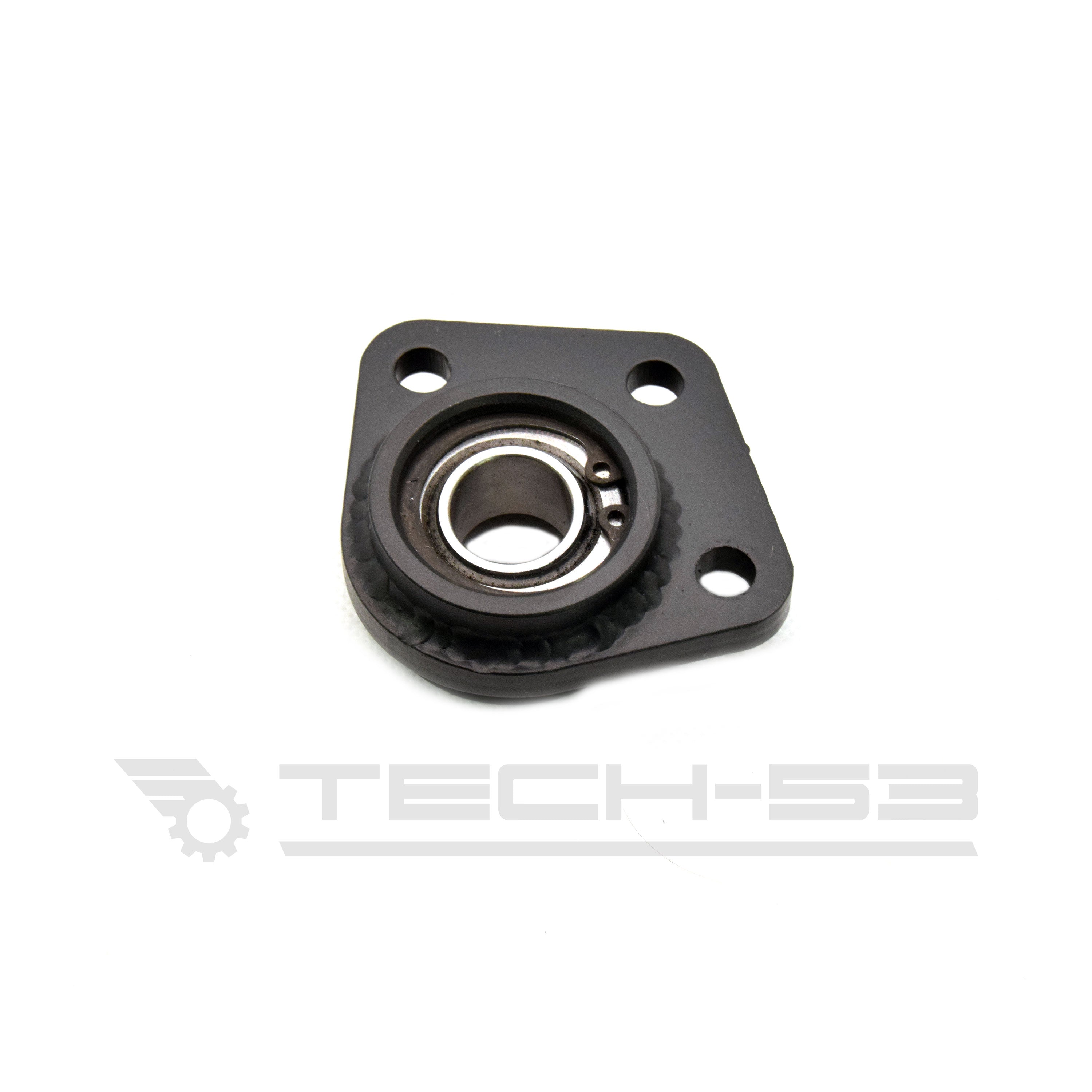

Comes with spherical bearing to install on your OEM LCA.

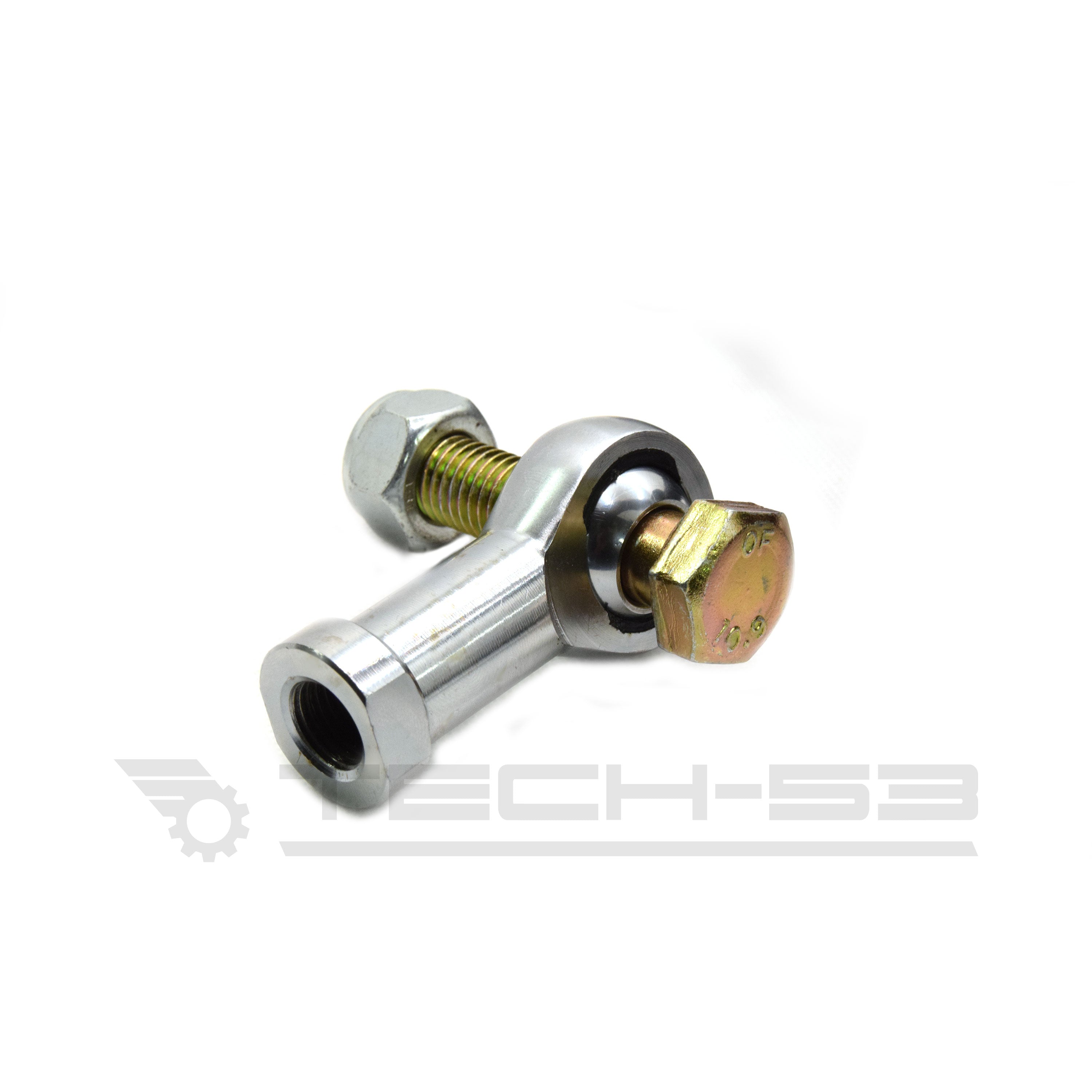

Also comes with Spherical bearing outer tie-rod end, and tie-rod hole in the knuckle machined / drilled for M14 graded hardware. PTFE ultra-performance bearing.

All hardware is supplied, and 0.100 shims are supplied for bump steer correction / prevent binding, for both Tie-rods, and ball joints.
Part numbers replaced during this process : 2 x 171 498 625D and 2 x 175 407 615.

Core charge
If you do not order the optional cores, we will wait until your knuckles are shipped to our shop before starting the production.

If you order the optional cores, we will work on our knuckles and ship them to you when they're done. Once you receive your restores knuckles, you can send your old ones back here for a refund on the core units. In order to be eligible for a refund, your knuckles must not be bent or deformed.
