VW MK1 1.4 TSI Swap Mounts
1/5
  • VW MK1 1.4 TSI Swap Mounts
  • VW MK1 1.4 TSI Swap Mounts
  • VW MK1 1.4 TSI Swap Mounts
  • VW MK1 1.4 TSI Swap Mounts
  • VW MK1 1.4 TSI Swap Mounts
VW MK1 1.4 TSI Swap Mounts

VW MK1 1.4 TSI Swap Mounts

$728.00
In stock

We also recommend...

Reliable shipping

Here's Tech-53 1.4TSI Swap Mount Kit for the VW MK1. The engineered solution for the 1.4 TSI swap. Precision-designed and built without compromise.

This isn't another adapter kit. Every component was 3D-scanned, FEA-tested, and refined through development to deliver the strength, geometry, and functionality this swap demands.

Fabricated from 100,000 PSI steel with machined accuracy that reflects a decade of learning what works—and what doesn't, with a fully FEA-validated design. All parts were CAD-modeled from 3D-scanned engine and chassis data to ensure maximum clearance, precision positioning and optimal oil pan clearance. Entirely TIG welded in house.

We retain factory MK1 side mount bushings in their correct orientation—no reversal required like earlier 1.8 swaps. FEA confirms optimal torque management across all three mounting points.

Mounting System Highlights

  • Passenger Side Mount
    Retains four OEM anchor points with integrated 3D boss provision on the cylinder head. Alternator anchors directly for OEM-grade alignment.

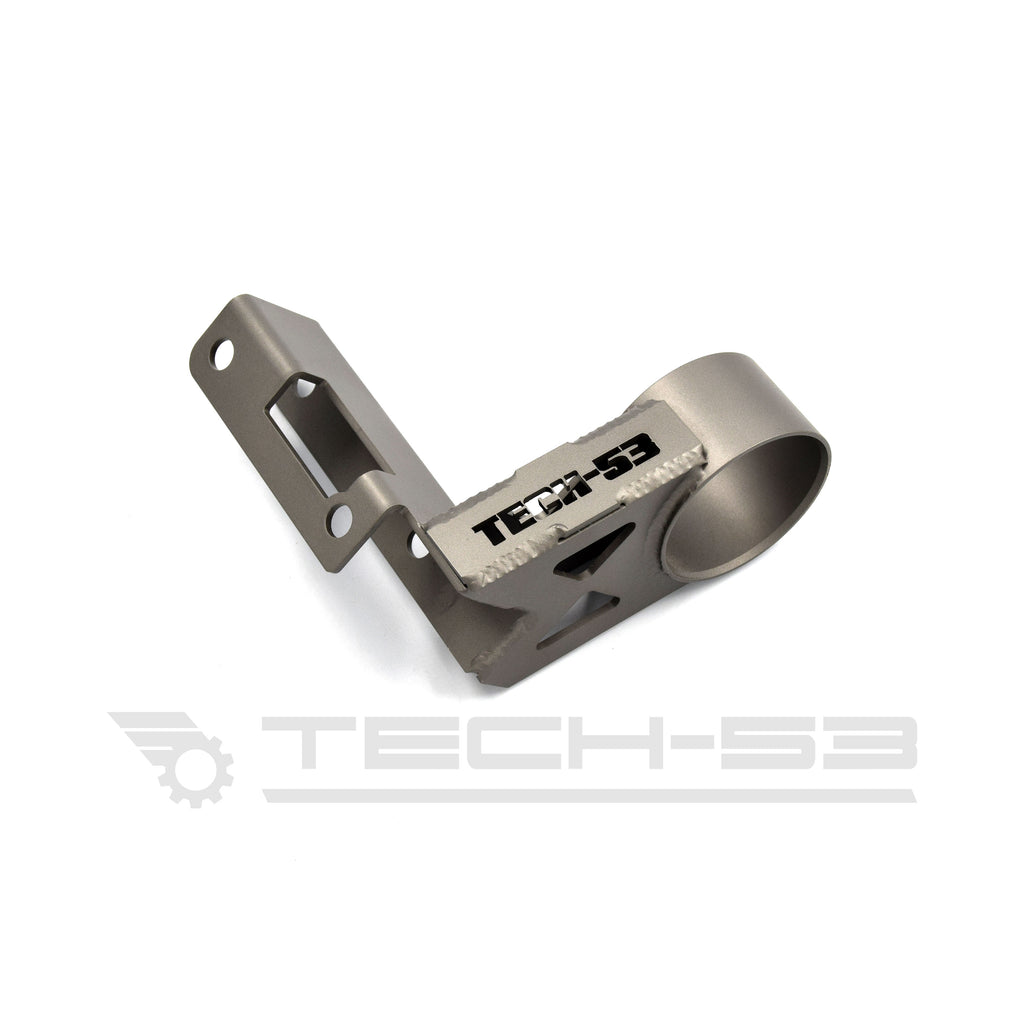

  • Transmission Side Mount
    Our 7th-generation 02A/02J design, compatible with 1.4 OEM 0A4 transmissions or 02J units with VSS output.
    (Note: 02A transmissions lack the lower threaded provision for dogbone mounting.)

  • Rear Mount
    Purpose-built for maximum suspension travel. Dual rubber bushings on the aluminum dogbone minimize NVH for a smooth ride.
    Retains factory Mk1 side mount bushings in correct orientation—no reversal required.

  • Front Snub Mount

What's Included

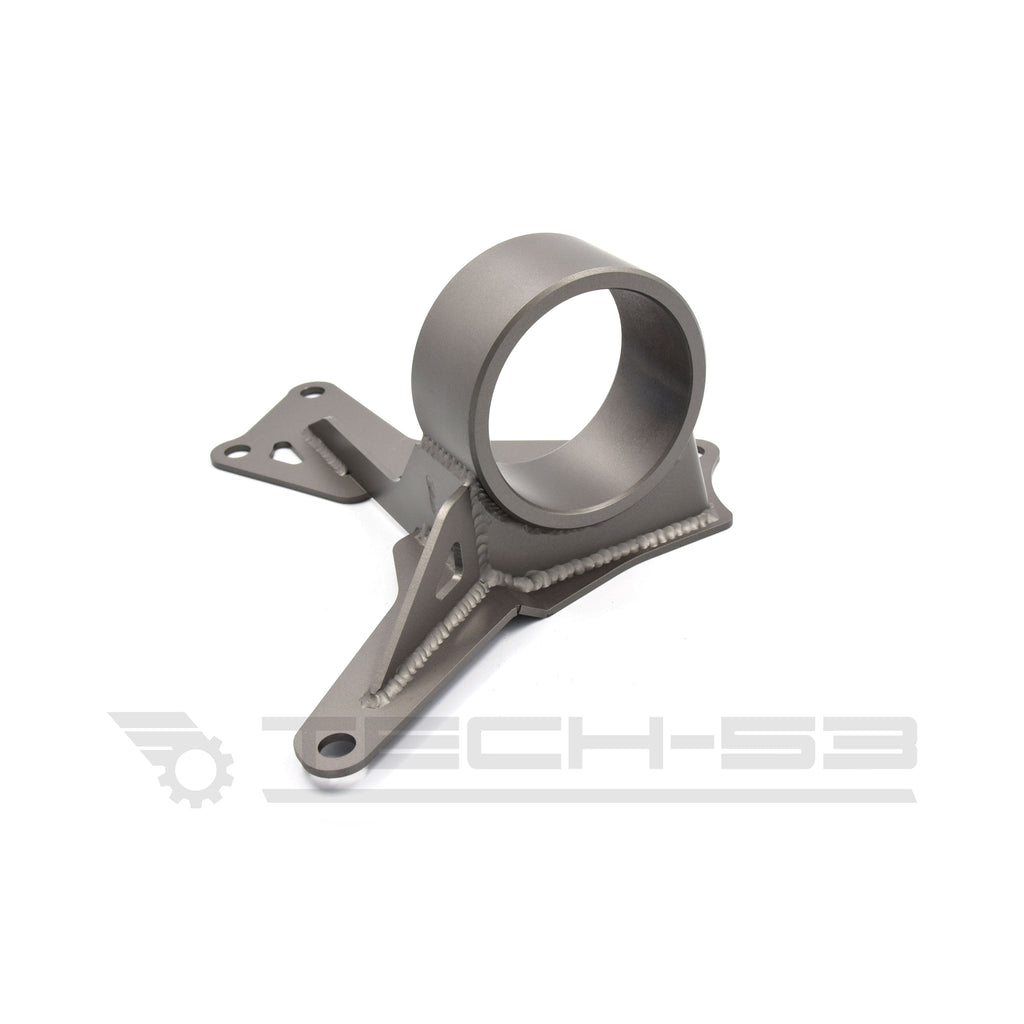

  • Timing belt side mount

  • Transmission side mount

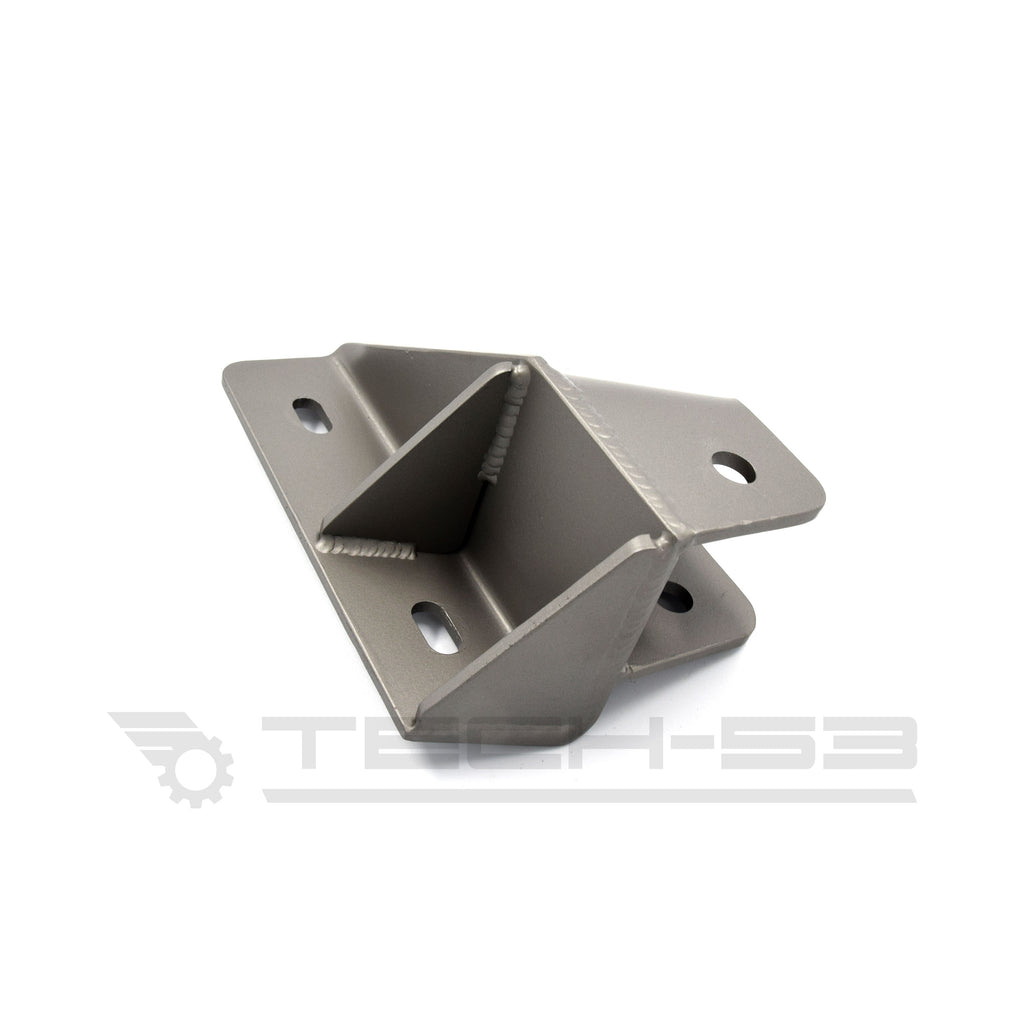

  • Rear transmission mount with aluminum “dogbone“

  • Complete grade 10.9 hardware kit

  • Optional: Pressed-in OEM rubber bushings (installed at no charge when ordered)

  • Limited Lifetime warranty

Part of a Complete Solution

This mount kit is just the beginning. Tech-53 offers a full ecosystem for your swap:

  • Matched downpipe (available here )

  • Clutch conversion (available here )

  • Standalone ECU calibration (MED17.1.21 available here )  MED17.1.27 in development available spring 2026.

  • Plug and play wiring harness with built in OEM low pressure fuel pump module, tach adapter module, relays, fuse box, and OBD2 port for diagnostics. (available here )

  • Wiki page about solutions and inspirations (insert link)

  • Complete and comprehensive parts options and listing of part numbers for your project.

ECU development is done with dyno testing for a proprietary street tune with major gains in HP and torque.

Why Enthusiasts Trust Tech-53

  • Proven designs since 2014

  • Global support for Mk1 VW projects

  • Knowledge-driven engineering at a price that makes sense

Ready to build it right? Choose Tech-53.

Does it fit in my car?

This kit fits all VW MK1 Jetta, Scirocco, Rabbit, Cabriolet & Pickup.
